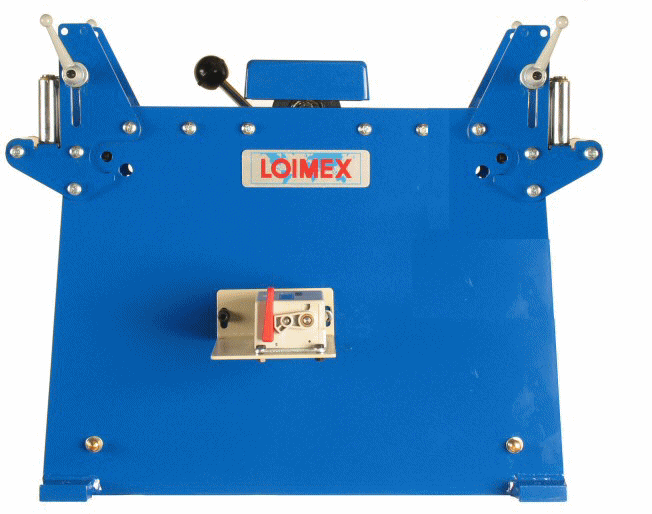

Cable measurer unit M40

zoom

The wire and cable measuring device can be used in a fixed position or together with machines for reeling and coiling cables.

Constructed for heavy industry production with major components fixed safely inside of the measuring device. Strong entry guide rollers to allow the cable to be fed from reel jacks, racks or unwinding devices.

Certification
Cable measurer with conformity to the Directive 2014/32/EU, with a high accuracy (± 0,5%), which is liable to certification by any accredited certification body in EU.
More information for the new MID directive
Range of application
Electric cables and cords from 3 to 40mm Ø.
Features
  • Steel housing
  • Measuring steel wheel with 1000 mm circumference. ( one turn one meter )
  • Steel pressure roller with bearings
  • Dual spring traction and protective cover
  • Actuated by lever through rack and pinion mechanism
  • Two straightening rollers adjustable to cable diameter.
  • Counting mechanism with continuous indication of the measure
  • Measure capacity 9999,99 meters.
  • ± 0,5 % accuracy. Class III
  • Speed measure: max. 200 meter / minute.
  • Optional WELMEC 7.2 application with CD-TOUCH-MID3 counter
  • CE mark
M20
M40
 M60 M80 M100/S
Cable diameter 1 to 20mm 3 to 40mm 10 to 60 mm 20 to 80mm 10 to 100mm
Counter capacity 9.999,99 mts 9.999,99 mts 9.999,99 mts 9.999,99 mts 99999.999 mts
Counter with preselection
M.I.D. certification YES YES YES NO Pending
Accuracy approx. ±0,5 % ±0,5 % ±0,5 % ±0,5 % ±0,5 %
Measuring wheel pressure 60N - 80N 230N - 275N 300N - 375N 475N 475N
Steel cable NO NO NO NO 5 to 55mm
Dimensions 360x200x400 mm 550x300x420 mm 700x360x600 mm 889x350x725 mm 1050x750x525 mm



Optionals

SP-INKJET-EVO
SH40
for cutting cable up to 40mmØ Cu-Al
Cable cutter directly attached to the output of the measurer device and driven by the hydraulic pump from the winding machine.
S35SB
for manually cutting cable, 35mmØ Cu-Al
Tilting support equipped with scissors for cable cutting, mounted on one side of the meter and in the cable exit position.
Only for installation for loose meters and not installed in the machine.
CD-TOUCH-MID3
Counter conforms MID homologation
Counter approved for mesuring instrument M.I.D. directive, with capacity up to 999,999,999 meters, color touch screen with record in memory of the measurements. Precision class III.
RR90
Set guide rollers type RR90, LOIMEX trademark, for installation at the entrance of the M type measurer device, to guide a more gentle curve for the cable that comes from the highest part of the reel rack.
RR180
to guide the cable from an opposite rack
Set guide rollers type RR180, LOIMEX trademark, for installation at the entrance of the M type measurer device, to guide a more gentle curve for the cable that comes from the highest part of the reel rack or oposite part.
PL40
dancing arm for measurer M40
This cable tension controller device is installed on the entry of the cable measurer. It will maintain the minimal tension for a cable of Ø mm, and placed to the entry of the measurer
BRT40
to guide the cable in type TR machines, 40mm Ø
Arm equipped with a guide and mounted on the measurer tray, in order to bring the cable closer to the nearest coil, to achieve a perfect winding.
