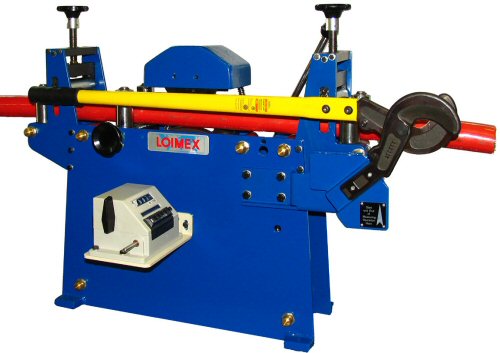

LOIMEX Mechanical cutter type s35sb Mechanical cutter type s35sb

Tilting support equipped with scissors for cable cutting, mounted on one side of the meter and in the cable exit position.
Only for installation for loose meters and not installed in the machine.

Cuts flexible cable up to 35 mm. in diameter and 250 mm section.
Measures 570 mm. large and weights 1.4 Kg.


Connect with Loimex

To learn more about our products and capabilities, or to get in touch with a Loimex representative, contact us today.

Contact us



Mechanical cutter type s35sb S35SB

Tilting support equipped with scissors for cable cutting, mounted on one side of the meter and in the cable exit position.
Only for installation for loose meters and not installed in the machine.

Cuts flexible cable up to 35 mm. in diameter and 250 mm section.
Measures 570 mm. large and weights 1.4 Kg.
S35SB
S50SB
Cable type Cu-Al Cu-Al
mm maximun 35 mm 50 mm
Accessory for M40 M60
Dimensions 250x400x360 mm 250x400x360 mm
