LOIMEX Cable measurer unit Cable measurer unit

The wire and cable measuring device can be used in a fixed position or together with machines for reeling and coiling cables.

Constructed for heavy industry production with major components fixed safely inside of the measuring device. Strong entry guide rollers to allow the cable to be fed from reel jacks, racks or unwinding devices.

Calibration
High precision which grants you the official calibration approval from the German Physical and Technical Institute, PTB and for the MID
Range of application
Electric cables and cords from 20 to 80mm .


Connect with Loimex

To learn more about our products and capabilities, or to get in touch with a Loimex representative, contact us today.

Contact us

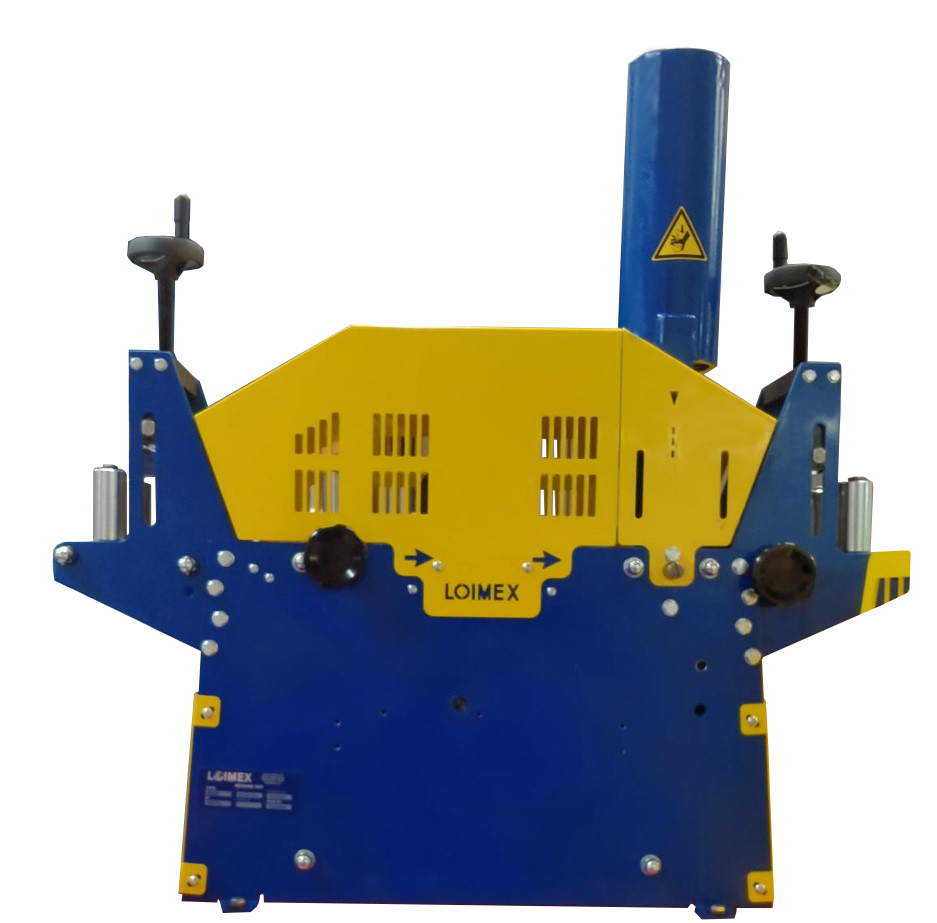

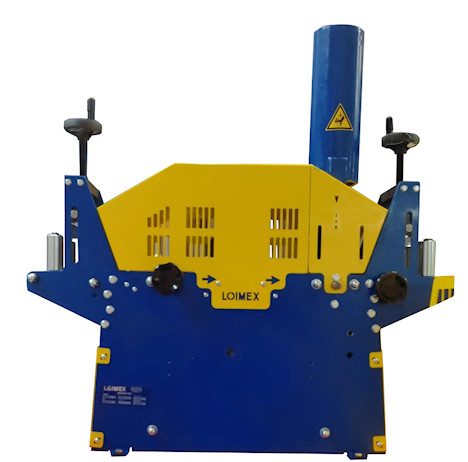

Cable measurer unit M80
Cable measurer unit

The wire and cable measuring device can be used in a fixed position or together with machines for reeling and coiling cables.

Constructed for heavy industry production with major components fixed safely inside of the measuring device. Strong entry guide rollers to allow the cable to be fed from reel jacks, racks or unwinding devices.

Calibration
High precision which grants you the official calibration approval from the German Physical and Technical Institute, PTB and for the MID
Range of application
Electric cables and cords from 20 to 80mm .
Features
  • Steel housing
  • Measuring steel wheel with 1000 mm circumference. ( one turn one meter )
  • Steel pressure roller with bearings
  • Dual spring traction and protective cover
  • Actuated by lever through rack and pinion mechanism
  • Two straightening rollers adjustable to cable diameter.
  • Two vertical guide rollers adjusted by spindle
  • Counting mechanism with continuous indication of the measure
  • Measure capacity 9999,99 meters.
  • 0,2 % accuracy
  • Speed measure: max. 70 m. / minute.
M20 M40 M60
M80
Cable diameter 1 to 20mm 3 to 40mm 10 to 60 mm 20 to 80mm
Counter capacity 9.999,99 mts 9.999,99 mts 9.999,99 mts 9.999,99 mts
Counter with preselection
Accuracy approx. 0,5 % 0,5 % 0,5 % 0,5 %
Measuring wheel pressure 60N - 80N 230N - 275N 300N - 375N 475N
Steel cable NO NO NO NO
Dimensions 360x200x400 mm 550x300x420 mm 700x360x600 mm 870x395x670 mm

Optionals

SP-INKJET-EVO
ink printing in the cable
Printer ink to print directly to the cable, type-INKJET-EVO SP.
Allows printing of logos on cable image, measure, order numbers, etc..
SH80
for cutting cable up to 80mm Cu-Al
Cable cutter directly attached to the output of the measurer device and driven by the hydraulic pump from the winding machine.
BR125
to guide the cable in type TR machines, 80mm
Arm equipped with a guide and mounted on the measurer tray, in order to bring the cable closer to the nearest coil, to achieve a perfect winding.
