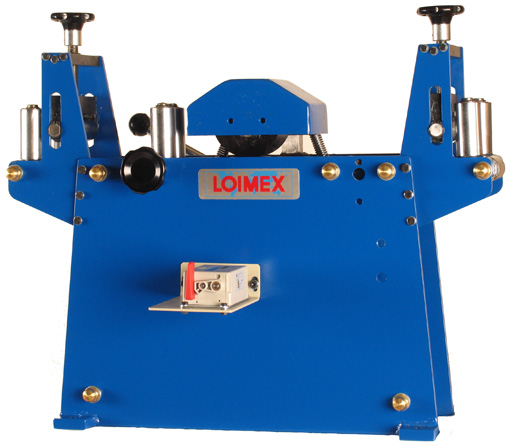

Cable measurer unit M60

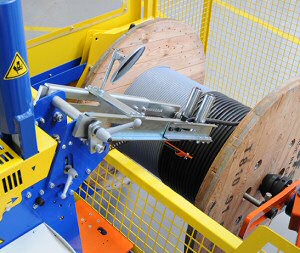

The wire and cable measuring device can be used in a fixed position or together with machines for reeling and coiling cables.

Constructed for heavy industry production with major components fixed safely inside of the measuring device. Strong entry guide rollers to allow the cable to be fed from reel jacks, racks or unwinding devices.

Certification
Cable measurer with conformity to the Directive 2014/32/EU, with a high accuracy ( 0,5%), which is liable to certification by any accredited certification body in EU.
More information for the new MID directive
Range of application
Electric cables and cords from 10 to 60 mm .
Features
  • Steel housing
  • Measuring steel wheel with 1000 mm circumference. ( one turn one meter )
  • Steel pressure roller with bearings
  • Dual spring traction and protective cover
  • Actuated by lever through rack and pinion mechanism
  • One straightening rollers adjustable to cable diameter.
  • Two vertical guide rollers adjusted by spindle
  • Counting mechanism with continuous indication of the measure
  • Measure capacity 9999,99 meters.
  • 0,5 % accuracy. Class III
  • Speed measure: max. 200 meter / minute.
  • Optional WELMEC 7.2 application with CD-TOUCH-MID3 counter
  • CE mark
M20 M40
M60

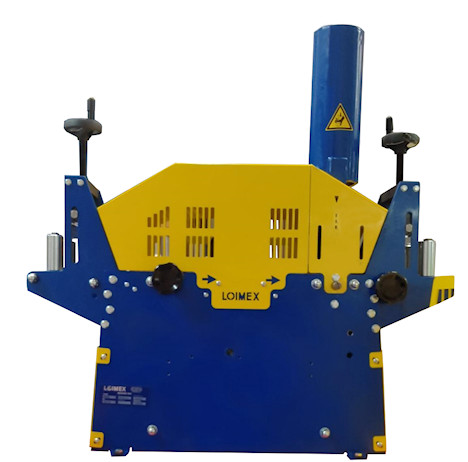

M80
Cable diameter 1 to 20mm 3 to 40mm 10 to 60 mm 20 to 80mm
Counter capacity 9.999,99 mts 9.999,99 mts 9.999,99 mts 9.999,99 mts
Counter with preselection
Accuracy approx. 0,5 % 0,5 % 0,5 % 0,5 %
Steel cable NO NO NO NO
Dimensions 360x200x400 mm 550x300x420 mm 700x360x600 mm 870x395x670 mm
