LOIMEX Measuring unit for twisted cable type mtr70 Measuring unit for twisted cable type mtr70

The wire and cable measuring device can be used in a fixed position or together with machines for reeling and coiling cables.

Constructed for heavy industry production with major components fixed safely inside of the measuring device. Strong entry guide rollers to allow the cable to be fed from reel jacks, racks or unwinding devices.

Calibration
High precision which grants you the official calibration approval from the German Physical and Technical Institute, PTB and for the MID
Range of application
To measure round and twisted cable from 5 to 70 mm & 700mm pitch
For lenght measuring of other materials that are not rounded.


Connect with Loimex

To learn more about our products and capabilities, or to get in touch with a Loimex representative, contact us today.

Contact us

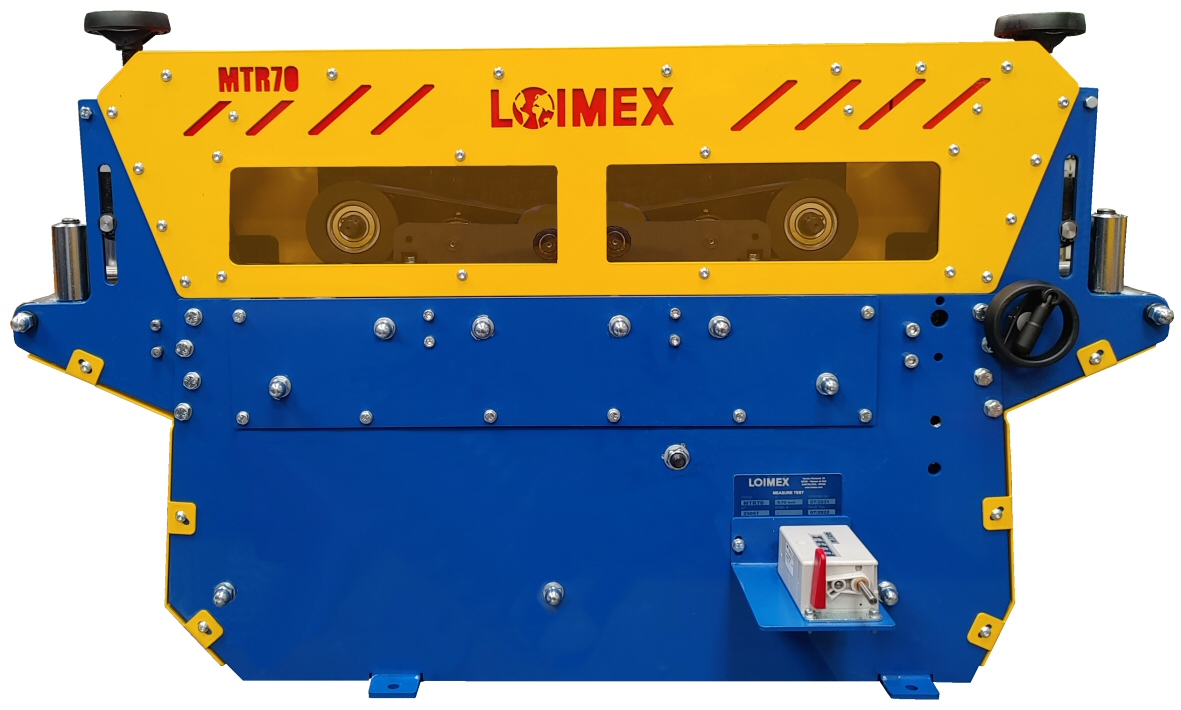

Measuring unit for twisted cable type mtr70 MTR70

The wire and cable measuring device can be used in a fixed position or together with machines for reeling and coiling cables.

Constructed for heavy industry production with major components fixed safely inside of the measuring device. Strong entry guide rollers to allow the cable to be fed from reel jacks, racks or unwinding devices.

Calibration
High precision which grants you the official calibration approval from the German Physical and Technical Institute, PTB and for the MID
Range of application
To measure round and twisted cable from 5 to 70 mm & 700mm pitch
For lenght measuring of other materials that are not rounded.
Features
  • Steel housing
  • Two lower fixed wheels with one belt- one serves as a measuring wheel
  • Two upper moving wheels with various intermediate rollers to press the cable, joined together by a special belt.
  • Dual spring traction and protective cover
  • Actuated by lever through rack and pinion mechanism
  • Two straightening rollers adjustable to cable diameter.
  • Two vertical guide rollers adjusted by spindle
  • Counting mechanism with continuous indication of the measure
  • Measure capacity 9999,99 meters.
  • 0,2 % accuracy
  • Speed measure: max. 70 m. / minute.
MTR50
MTR70

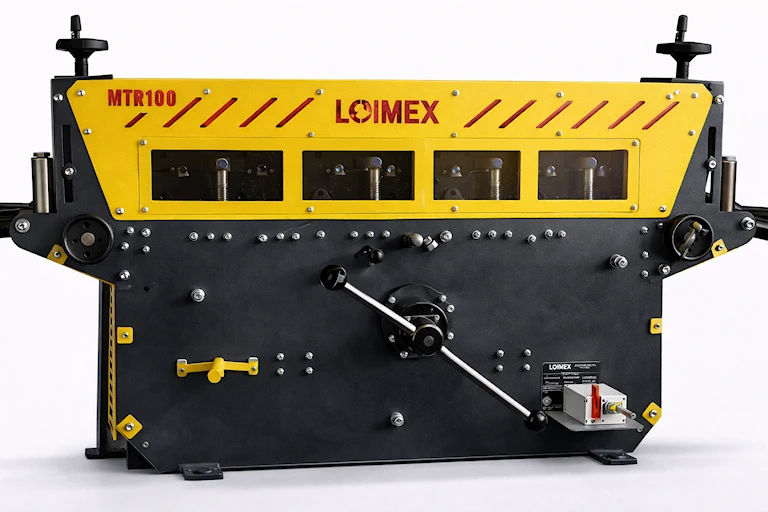

MTR100
Cable diameter 3 to 50 mm & 500 mm 5 to 70 mm & 700mm 6 to 100 mm & 1000 mm
Counter capacity 9.999,99 mts 9.999,99 mts 9.999,99 mts
Counter with preselection O O O
Round cable accuracy 0,2% 0,2% 0,2%
Twisted cable accuracy 0,4% 0,4% 0,4%
Dimensions 800x275x670 mm 1.070X300X670 mm 1.400x370x810 mm

Optionals

SP-INKJET-EVO
ink printing in the cable
Printer ink to print directly to the cable, type-INKJET-EVO SP.
Allows printing of logos on cable image, measure, order numbers, etc..
BR125
to guide the cable in type TR machines, 80mm
Arm equipped with a guide and mounted on the measurer tray, in order to bring the cable closer to the nearest coil, to achieve a perfect winding.
SH80
for cutting cable up to 80mm Cu-Al
Cable cutter directly attached to the output of the measurer device and driven by the hydraulic pump from the winding machine.
