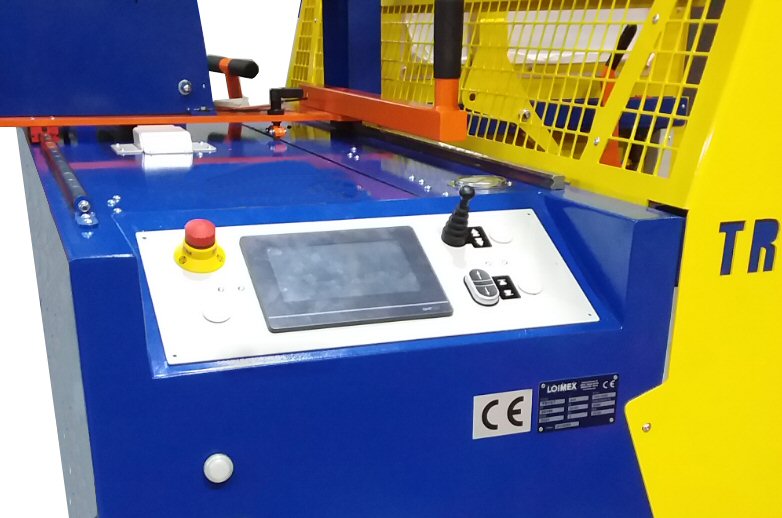

Traverse unit for automatic cable layering REL37

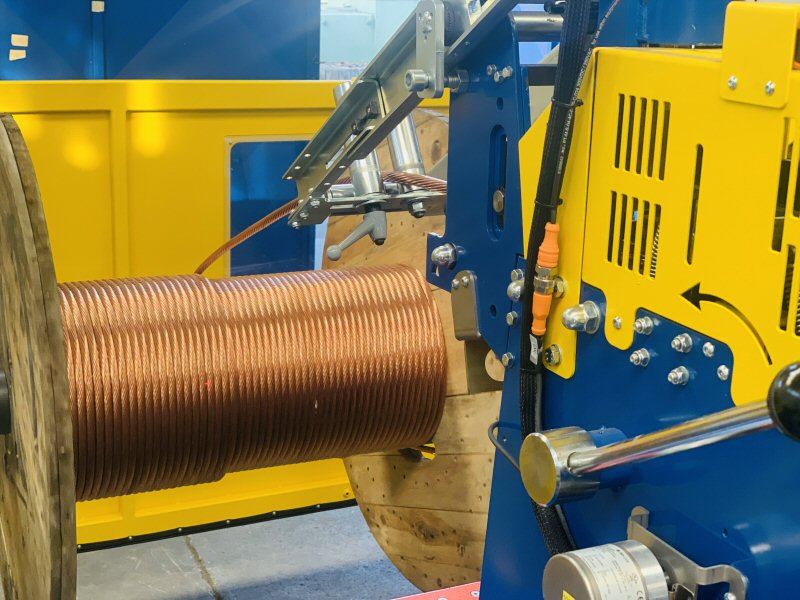

Highly precise and easy to manage mechanism that serves to automatically distribute the cable during winding.

Range of application
Combined with a pre-selection counter, enables the machine to work automatically; thus allowing the operator to do other tasks during winding.
Features
  • Pitch selection is carried out by means of a 10 turn potentiometer or laser diameter measure device
  • position is regulated by a position encoder which can be memorized
  • Four memory positions from a Touch panel selection
  • Maximum torque of 900 Nm
  • Accessory for installing to the following machines TR
REL18 REL16D REL26D
REL37
REL50
Power kW (HP) 0.75 ( 1 ) 0.75 (1) 0.75 (1) 1.1 (1.5) 1.1 (1.5)
Torque Nm. 600 600 600 900 800
Step (mm per revolution) 0-30 0-50 0-65 0-100 5-100
Measuring head M20, @M20/S  M20-M40 M20-M60 All All
Accessory for D18  D30  DTR TR TRP



Optionals

REL-ACD
BR-LP
Laser pointer to help to wind the cable
Laser pointer situated at the laying arm or directly to the end of the measurer device.
