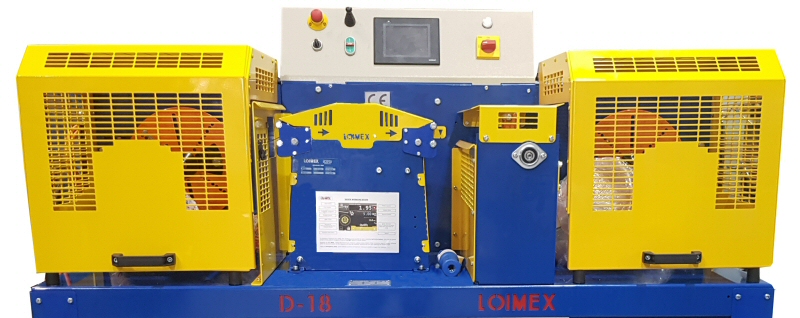

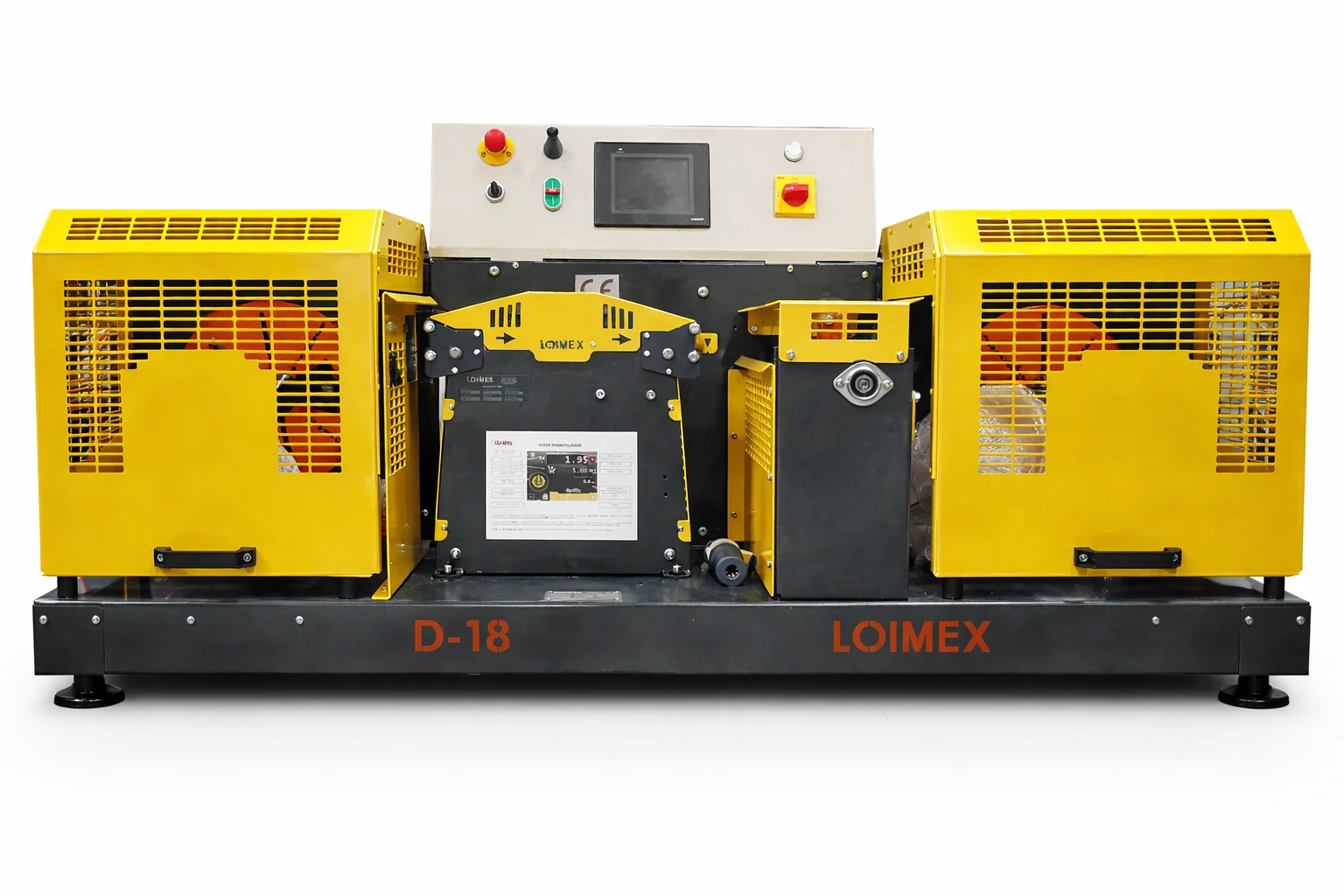

Winding machine for measuring and making coils from 1 to 16mm diameter of cables and other flexible materials. Machine is composed of a measuring unit, a coiler unit and optionally an unwinding unit, all mounted in a sturdy frame of steel.

Range of application

To make coils of cable in drums or using the coiling head

To measure electrical cables from 1 to 16 mm Ø.

Unwinding cable

Features

• Sturdy frame construction, optional feet with wheels
• M20 measurer included
• Moto-reducer of 0,75 kw (1 HP)
• Slow ramp and adjustable speed regulator with the use of a frequency inverter
• Unwinding otpional, with different options
• Optional automatic cable laying
• Coiling unit included, different options available
• Safety cage following the CE securities directive.

Options to equip the D18 unit

Different options units for the unwinding and winding to build the D18 exaclty for your needs:

Pay Off

Take Up

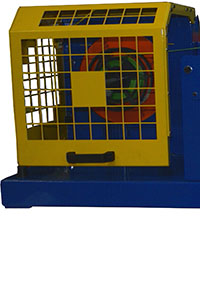

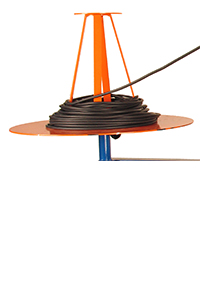

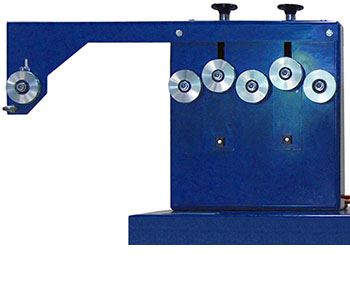

Unwinding Plate A20 Dismountable plate of 500 mm Ø Cone 60:200 mm Ø, 350 mm high, with removeable locking plate.. Maximum capacity: 30 kg. Unwinding A35.20 Unwinding plate to allocate drums of 350mm diameter and 200mm width. Hand regulated brake for the output tension of the cable. Maximum capacity: 30 kg. Tensor A Tensor unit with hand regulation ‹ ›

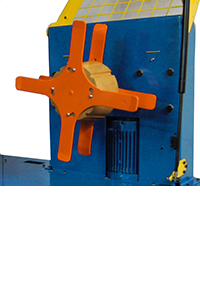

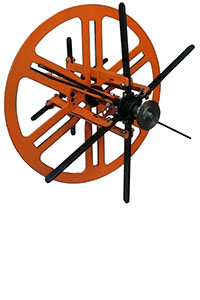

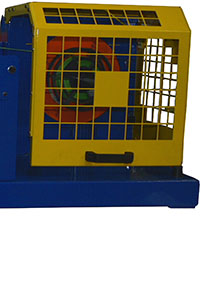

Coiler R27 CCoiler device type R 27, LOIMEX trademark, for winding electrical cable, maximum capacity of 15 kg. Cast-iron bearing block with wooden cone of 60:200 mm Ø and 350 mm high. Coiler R35.20 Coiler R35.20, LOIMEX trademark, with an axle of 30mm Ø with a dragging plate, for winding electrical cable over small drums of maximum 350mm Ø and 200mm. width Coiler RD16 An 350 mm exterior Ø ,a 110 mm hub and a useful interior width of 200 mm, comprising a front and rear crosspiece with six blades and a hub with six sectors. Maximum capacity: 15 kg. ‹ ›
