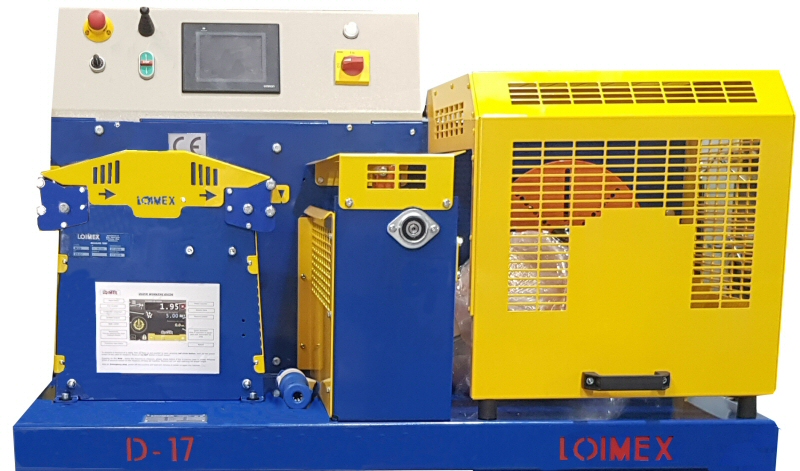

Measuring and recoiling device D17

Winding machine for measuring and making coils from 1 to 16mm diameter of cables and other flexible materials. Machine is composed of a measuring unit, a coiler unit and optionally an unwinding unit, all mounted in a sturdy frame of steel.

Range of application
To make coils of cable in drums or using the coiling head
To measure electrical cables from 1 to 16 mm Ø.
Features
  • Sturdy frame construction, optional feet with wheels
  • M20 measurer included
  • Moto-reducer of 0,75 kw (1 HP)
  • Slow ramp and adjustable speed regulator with the use of a frequency inverter
  • Optional automatic cable laying
  • Coiling unit included, different options available
  • Safety cage following the CE securities directive.
Options to equip the D17 unit
Different options units for the unwinding and winding to build the D17 exaclty for your needs:

Take Up

D17
D18
Cable diameter 1 a 16 mm 1 a 16 mm
Counter capacity 9.999,99 9.999,99
Accuracy approx. ± 0,5% ± 0,5%
Steel cable opcional opcional
Variable Frequency Drive
Speed ( R.P.M.) 30-200 30-200
Power kW (HP) 0,75 (1) 0,75 (1)
Torque Nm. 129 129
Voltage (V / Hz) 230/50 230/50
Fusing 1x16 A 1x16 A
Technical features
Dimensions 1.235x760x700 mm 1.680x760x700 mm
Weight Kg 125 155



Optionals

REL18
for automatically lay the cable on the drum for D17 or D18
Highly precise and easy to manage mechanism that serves to automatically distribute the cable during winding.
RD16
for making coils of cable, width 150mm / 350mm Ø
This coiler device enables to wind coils of cable without using a wooden drum, build with a front and rear cross piece with six blades and a hub with six sectors.
Made to easily tie the coil and to remove the coil of cable effortless
