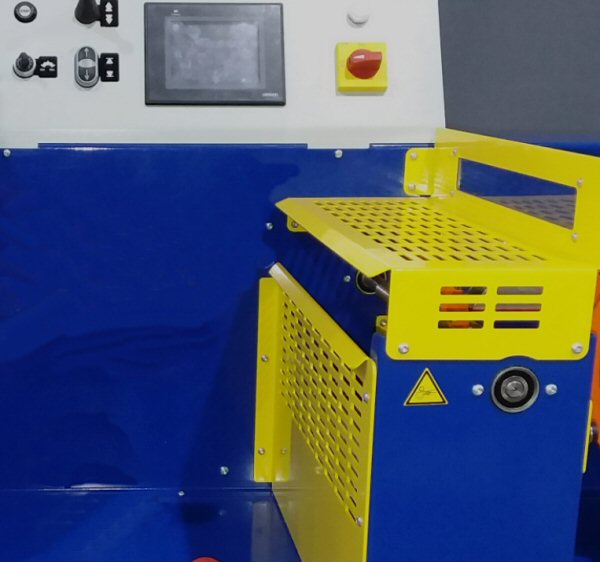

Automatic traverse unit REL18

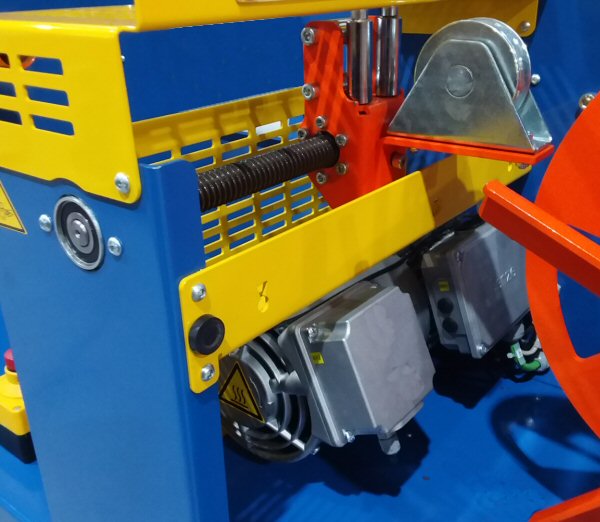

Highly precise and easy to manage mechanism that serves to automatically distribute the cable during winding.

Range of application
Combined with a pre-selection counter, enables the machine to work automatically; thus allowing the operator to do other tasks during winding.
Features
  • Pitch selection is carried out by means of a 10 turn potentiometer or laser diameter measure device
  • position is regulated by a position encoder which can be memorized
  • Four memory positions from a Touch panel selection
  • Maximum torque of 600 Nm
  • Accessory for installing to the following machines D18
REL18
REL16D REL26D REL37 REL50
Power kW (HP) 0.75 ( 1 ) 0.75 (1) 0.75 (1) 1.1 (1.5) 1.1 (1.5)
Torque Nm. 600 600 600 900 800
Step (mm per revolution) 0-30 0-50 0-65 0-100 5-100
Measuring head M20, @M20/S  M20-M40 M20-M60 All All
Accessory for D18  D30  DTR TR TRP
