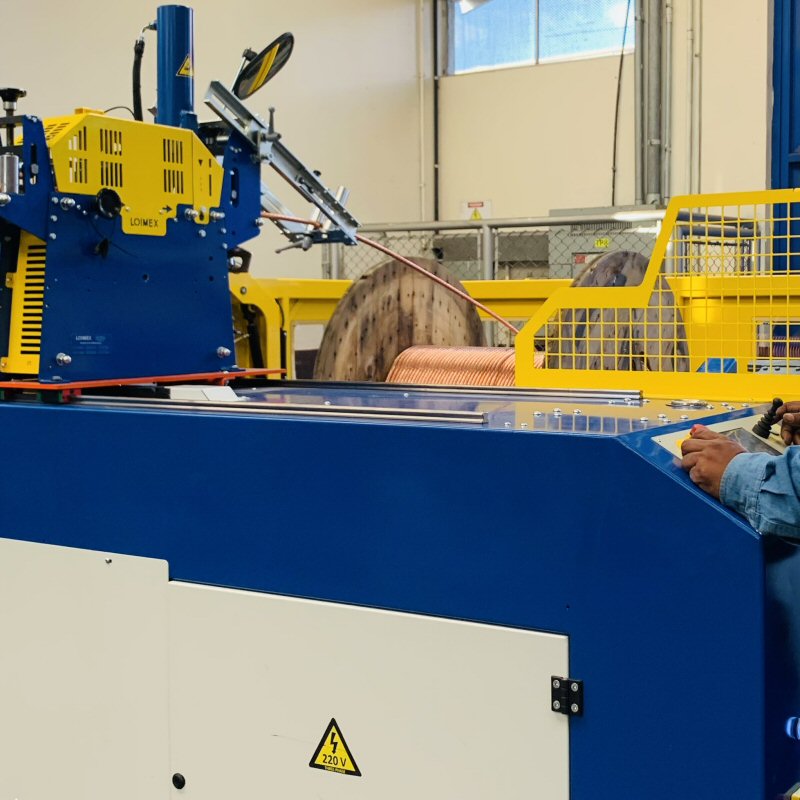

LOIMEX Automatic cable laying device type rel50 Automatic cable laying device  type rel50

Highly precise and easy to manage mechanism that serves to automatically distribute the cable during winding.

Range of application
Combined with a pre-selection counter, enables the machine to work automatically; thus allowing the operator to do other tasks during winding.
Features
  • Pitch selection is carried out by means of a 10 turn potentiometer
  • position is regulated by a position encoder which can be memorized
  • Four memory positions from a Touch panel selection
  • Maximum torque of 800 Nm
  • Accessory for installing to the following machines TRP

Connect with Loimex

To learn more about our products and capabilities, or to get in touch with a Loimex representative, contact us today.

CONTACT US



Automatic cable laying device type rel50 REL50
Automatic cable laying device  type rel50

Highly precise and easy to manage mechanism that serves to automatically distribute the cable during winding.

Range of application
Combined with a pre-selection counter, enables the machine to work automatically; thus allowing the operator to do other tasks during winding.
Features
  • Pitch selection is carried out by means of a 10 turn potentiometer
  • position is regulated by a position encoder which can be memorized
  • Four memory positions from a Touch panel selection
  • Maximum torque of 800 Nm
  • Accessory for installing to the following machines TRP
REL16 REL16D REL26D REL37
REL50
Power kW (HP) 1 HP 0.75 (1) 0.75 (1) 1.1 (1.5) 1.1 (1.5)
Torque Nm. 600 600 600 900 800
Step (mm per revolution) 0-50 0-50 0-65 0-100 5-100
Measuring head M20,M20/S M20-M40 M20-M60 All All
Accessory for D16  D30  DTR TR TRP
