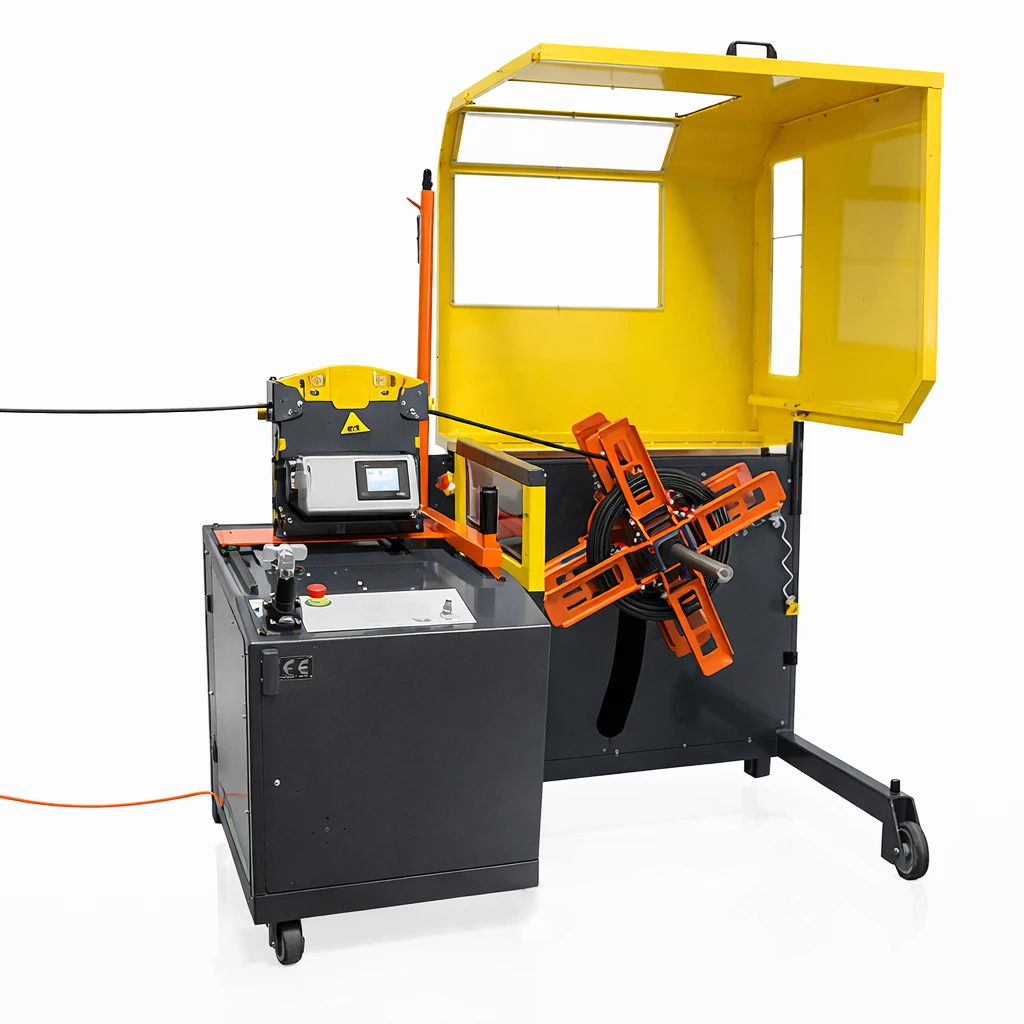

DTR100

The measuring and coiling machines type DTR are used when cables, conductors, etc. have to be uncoiled from original coils, reels on jacks or reels in racks and to be measured at the same time. The complete working process is carried out from one power source.
Machines built using European Security normative CE

Range of application

With this measuring and coiling machine, type DTR, you can; make coils or fill small wooden drums of cable with a maximum weight of and measuring cable of a diameter between 1 to 60 mm.

Features

• Sturdy frame construction with steering wheels.
• Mechanical counter , touch panel optional.
• Coiler device , to make coils of cable up to 800 Ø.
• For drums up to mm Ø and mm width
• Hydraulic cylinder with a hand pump for lifting the drums
• Electro-hydraulic optional to fast operation for lifting and cutting cable
• Slow ramp and adjustable speed regulator with the use of a frequency inverter.
• Safety cage with automatic switch lock following the CE securities directive
