LOIMEX Cable measurer device Cable measurer device

Device to measure cable from a fixed position, or installed in a desktop,or using it on a winding cable machine.

Range of application
Electric wires, cables, cords, etc. from 1 to 30mm
Features
  • Steel housing
  • aluminium measuring wheel circumference of 500mm., with ball
  • Steel pressure roller with ball bearings, spring traction and actuated by lever.
  • Guide rollers at the input and output of the measuring device to assure tangential passage of the material to be measured.
  • Option to install a mechanical counter or an encoder for digital counter.
  • Precision 1%.


Connect with Loimex

To learn more about our products and capabilities, or to get in touch with a Loimex representative, contact us today.

Contact us

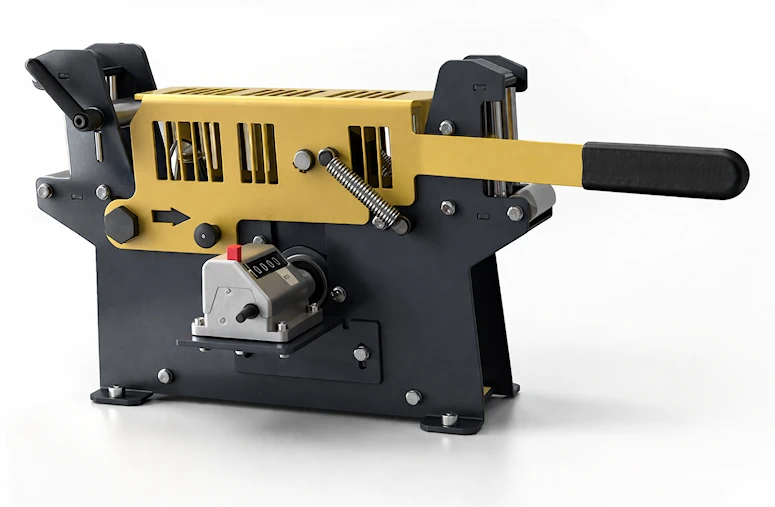

Cable measurer device MH30

Device to measure cable from a fixed position, or installed in a desktop,or using it on a winding cable machine.

Range of application
Electric wires, cables, cords, etc. from 1 to 30mm
Features
  • Steel housing
  • aluminium measuring wheel circumference of 500mm., with ball
  • Steel pressure roller with ball bearings, spring traction and actuated by lever.
  • Guide rollers at the input and output of the measuring device to assure tangential passage of the material to be measured.
  • Option to install a mechanical counter or an encoder for digital counter.
  • Precision 1%.
MH30
Cable diameter 1 to 30 mm
Counter with preselection optional
Accuracy approx. 1%
Dimensions 560x260x220mm
Weight Kg 10,5
