LOIMEX Hand held cable measurer Hand held cable measurer

Manual measuring device designed for measuring length of cables quickly, easily and accurately. Its reduced size and weight makes it perfect for measurements directly from the place where the coil of wire or the cable drum is placed.

Range of application
Electric wires, cables, cords, etc. from 5 to 50 mm
Features
  • Housing and pressure stirrup made out of light alloy
  • Steel measuring wheel, 20mm in circumference, knurled surface.
  • Pressure roller adjustable for 3 diameter ranges
  • Pressure via 2 tension springs on the pressure stirrup.
  • Two guide rollers on the inlet side.
  • Roller counter with continuous indication of the measuring results,
  • Measuring range 999.99 meters.
  • Zeroing via pressure lever.


Connect with Loimex

To learn more about our products and capabilities, or to get in touch with a Loimex representative, contact us today.

Contact us

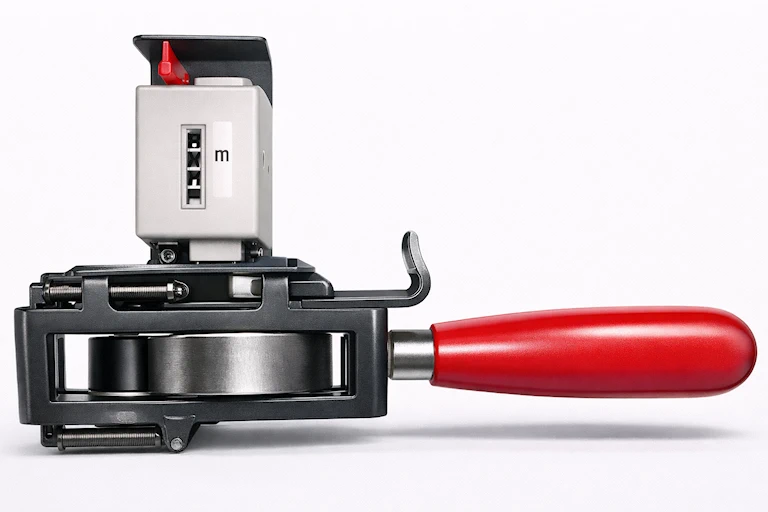

Hand held cable measurer H12

Manual measuring device designed for measuring length of cables quickly, easily and accurately. Its reduced size and weight makes it perfect for measurements directly from the place where the coil of wire or the cable drum is placed.

Range of application
Electric wires, cables, cords, etc. from 5 to 50 mm
Features
  • Housing and pressure stirrup made out of light alloy
  • Steel measuring wheel, 20mm in circumference, knurled surface.
  • Pressure roller adjustable for 3 diameter ranges
  • Pressure via 2 tension springs on the pressure stirrup.
  • Two guide rollers on the inlet side.
  • Roller counter with continuous indication of the measuring results,
  • Measuring range 999.99 meters.
  • Zeroing via pressure lever.
H12
H12/S
Cable diameter 5 a 50 mm 5 a 50 mm
Counter capacity 999,99 999,99
Steel cable No 5 a 22 mm
Flat cable No No
Accuracy approx. 0,5% 0,5%
Dimensions 330x215x70mm 330x215x70mm
Weight Kg 1,9 1,9
