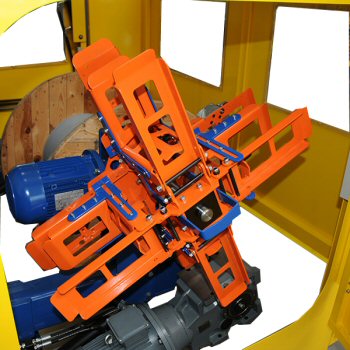

Collapsible coiling device for trg machines RG8.25

zoom

This coiler device enables to wind coils of cable without using a wooden drum, build with a front and rear cross piece with four blades and a core with four sectors.
Made to easily tie the coil and to remove the coil of cable effortless

Range of application
For making coils of cable without using drums
Features
  • To fill a coil of cable of a maximum 800 mm de Ø
  • Core of 390/460/530 mm de Ø
  • Useful inner width 250 mm
  • Four separators to regulate the inner width, mm: 200/150/100
  • Front crosspiece being articulated for the quick extraction of the cable
  • Clamp to attach the beginning of the cable
  • Device designed to be attached to a TRG machine
  • Coiling device has a maximum capacity of 150 Kg
By request the device can be designed according to customer needs
RT8.20 RT9.25 RT10.25 RG8.20
RG8.25
 RP10.25
Maximum capacity 150 Kg 150 Kg 150 Kg 150 Kg 150 Kg 150 Kg
Ø exterior mm 800 900 1000 800 800 1000
Ø core mm 350 or 420 390/460/530 390/460/530 350 / 420 390/460/530 390/460/530
Widht mm 200 250 250 200 250 250
Variable Width mm 200-150-120-90 250-200-150-100 250-200-150-100 150-120-90 200/150/100 200/150/100
Accessory for TR TR TR TRG TRG TRP
