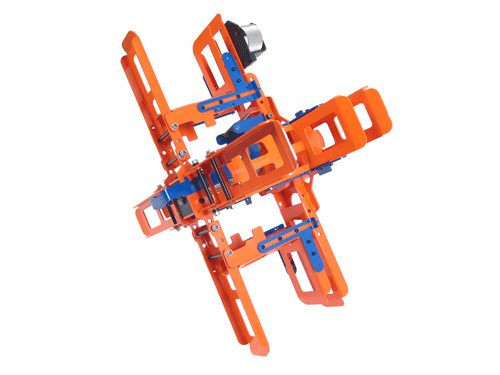

Collapsible coiling device type rd80 RD80

This coiler device enables to wind coils of cable without using a wooden drum, build with a front and rear cross piece with four blades and a hub with four sectors.
Made to easily tie the coil and to remove the coil of cable effortless

Range of application
For making coils of cable without using drums
Features
  • To fill a coil of cable of a maximum 800 mm de Ø
  • Hub of 350 /420 mm de Ø
  • Useful interior width 200 mm
  • Four separators to regulate the interior width, mm: 200-150-120-90
  • Front crosspiece being articulated for the quick extraction of the cable
  • Single part to attach the beginning of the cable
  • Device designed to be attach to a DTR80 machine
  • Coiling device has a maximum capacity of 150 Kg
By request the device can be designed by the need of the customer
RD16 RD20 RD30
RD80
RD100
Maximum capacity 15Kg 100Kg 150 Kg 150 Kg 150kg
Ø exterior mm 350 600 800 800 800
Ø core mm 105-185 215 or 250 350 / 420 350 /420 350 / 420
Widht mm 150 150 200 200 200
Variable Width mm 5-150 - 200-150-120-90 200-150-120-90 200-150-120-90
Accessory for D16  D30  D30  DTR80  DTR100
