Steel bar bridge type pe30 PE30

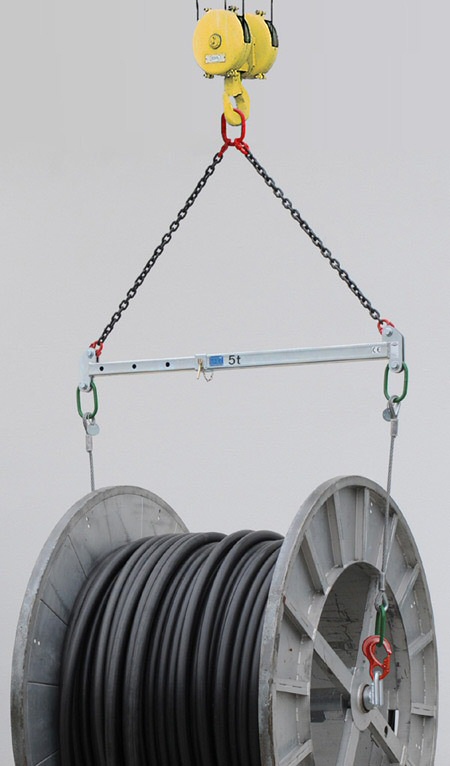

Loading traverse for safe lifting and transporting of cable drums. With chain suspension and 2 adjustable steel rope suspensions, suitable for drums acc. table below. Further dimensions are available on short call.

Range of Application
for safe lifting and transporting of cable drums.
for unwinding cable ( optional )
Features
  • Maximum load: 3.000 Kgs.
  • Drum width: min. 1.200 - max: 1.800 mm
  • Diámetro de bobina máx: 3.000 mm.
  • Weight.: 35 kgs.
  • Includes steel rope suspensions
  • CE certification
PE30
PE50 PE120 PE210
Ø mm maximum 2500 3000 4000 4500
Maximun weight kg. 3000 5000 12000 21000
