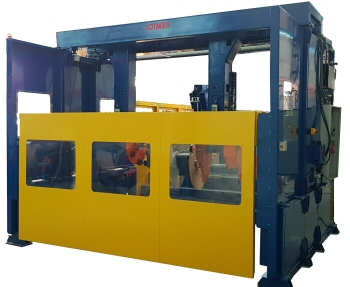

Unwinding gantry — UNWINDING MACHINES TYPE DVP10

DVP-10

Automatic gantry pay-off machine to unwind a drum of cable with safety while having a tension to the cable through a motor driven torque control.

The unwinding machine has an electronic adjustable hydraulic brake which controls the start, speed and stop of the reel when unwinding.

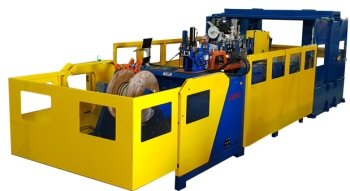

With a plug-in connector to connect to any winding machine, will allow you to work as standalone machine or connected with the DVP pay-off in sync mode.

Range of use:

Wooden drums from to mm Ø.
Maximum weight Kg

Placement for take-up: The reel is placed between the arms, which move hydraulically to grasp it and elevate it. These movements are carried out through buttons located on the front of the machine, allowing us to see the positioning is correct, or through the touchscreen on the main control panel

Features

Sturdy frame construction.
Hydraulic lifting and lowering
Manual brake control tensor, optionally motorized or torque controlled
Automatically opening and closing of the center sleeves.
Safety cage with automatic switch-off following CE securities directive.

DVP-6

for reels up to 2200mm Ø - 6000 Kg.

DVP-10

for reels up to 2800mm Ø - 10000 Kg.

+ Add to quote list Technical data

Ø mm minimum 1.400

Ø mm maximum 2.800

Minimum width mm 850

	DVP-6	DVP-10
Drum/Reel	DVP-6	DVP-10
Ø mm minimum	600	1.400
Ø mm maximum	2200	2.800
Minimum width mm	480	850
Maximum width mm	1600	1.650
Maximum weight kg.	6000	10.000
Reel Elevation	DVP-6	DVP-10
by electro hydraulic	✓	✓
Reel Drive	DVP-6	DVP-10
Voltage (V / Hz)	400V/50Hz	400V/50Hz
Fusing	3x32A+N	3x32 A+N

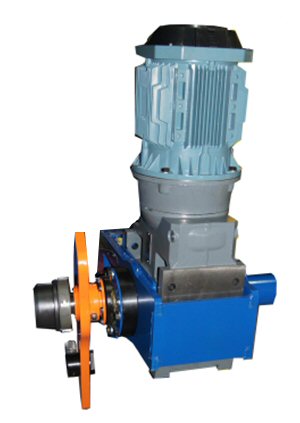

DV-MOTP10Unwinding drive

DVP-10
