R41M

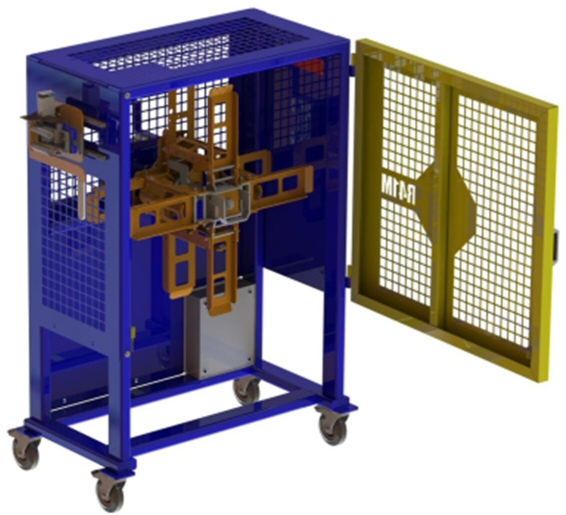

Manual cable winding device type R41M, brand LOIMEX, to measure and make coils of cable with the coiler unit, the core and front crosspiece are articulated for a quick extraction of the cable, due to the decrease of the inside core and the front blades being completely opened. Optionally can be equipped with a measuring device H12 type.

Range of application

To wind coils of cable with a maximum weight of 150 kg.

For measuring electric wires, cables, cords, etc. from 2 to 30 mm Ø

Features

• Sturdy frame for stationary mounting
• Four wheels to transport easily the machine
• Heavy base plate.

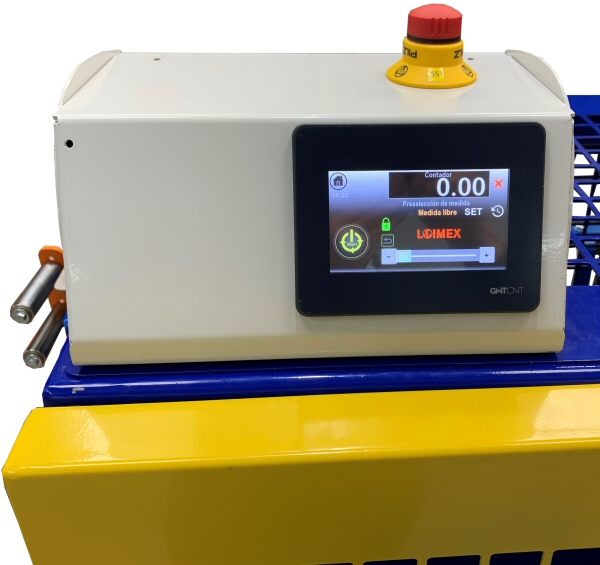

• Variable speed drive from with selector switch on control panel
• Coiling shaft mounted in double ball bearings.
• Coiler RD30M type, with a 800 mm exterior diameter
• Two sizes for the core 350 & 420 mm.
• Useful inside width of 200 mm.
