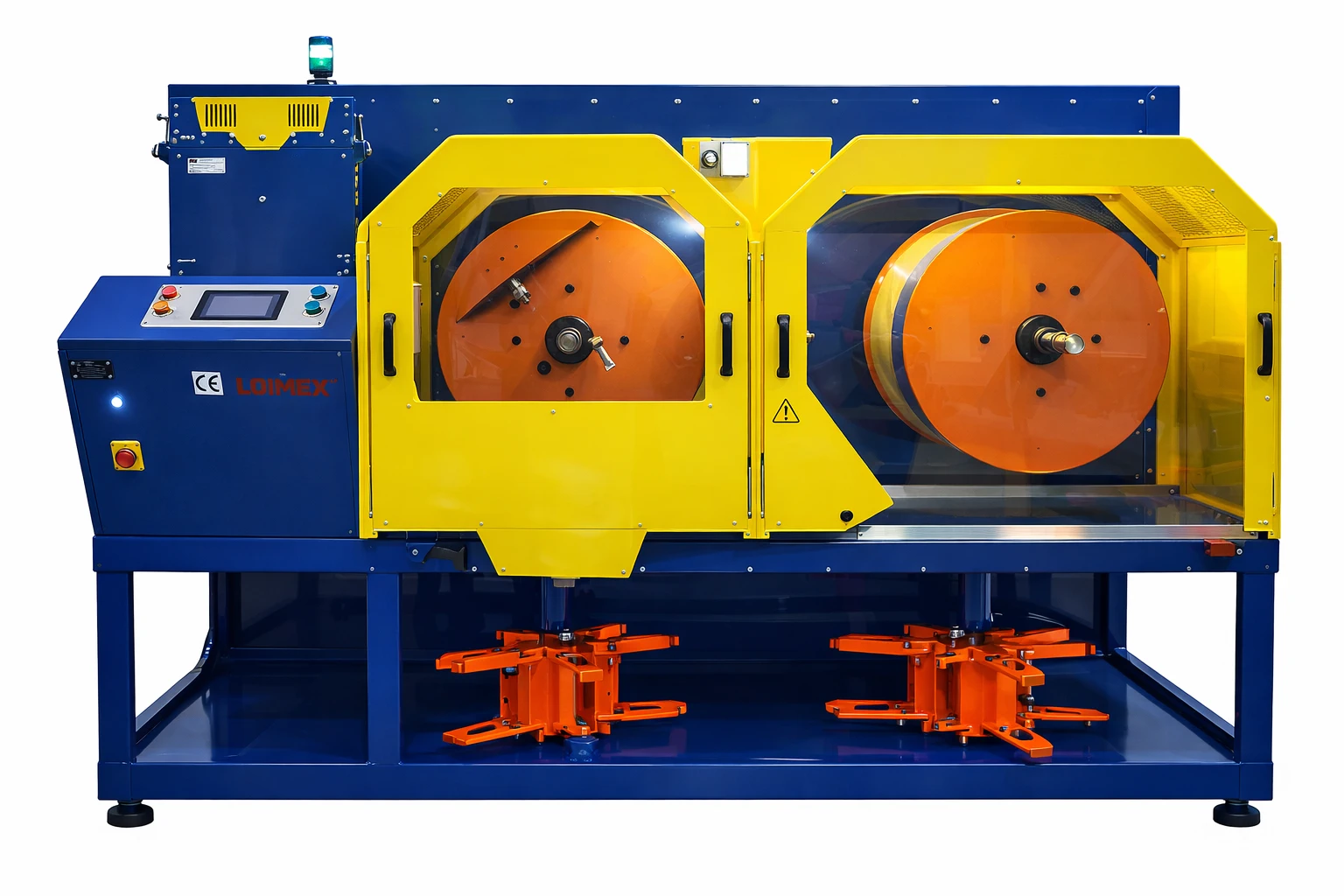

D30-2C

The measuring and coiling machines type D30-2C are used when cables, conductors, etc. have to be uncoiled from original coils, reels on jacks or reels in racks, or from an extrusion machine and to be measured at the same time.
Machines built using European Security normative CE

Range of application

With this measuring and coiling machine, type D30-2C, you can; make coils or fill small wooden drums of cable with a maximum weight of 200 kg and measuring cable of a diameter between 1 to 40 mm.

Features

• Sturdy frame construction.
• Mechanical counter M410, touch panel optional.
• Coiler device RD20, to make coils of cable up to 600 Ø.
• For small drums of 600 Ø and 350mm width
• Slow ramp and adjustable speed regulator with the use of a frequency inverter.
• Safety cage with automatic switch lock following the CE securities directive
