LOIMEX Doble coiling head for high production Doble coiling head for high production

The measuring and coiling machines type D30-2C are used when cables, conductors, etc. have to be uncoiled from original coils, reels on jacks or reels in racks, or from an extrusion machine and to be measured at the same time.
Machines built using European Security normative CE

Range of application
With this measuring and coiling machine, type D30-2C, you can; make coils or fill small wooden drums of cable with a maximum weight of 200 kg and measuring cable of a diameter between 1 to 40 mm.
Features
  • Sturdy frame construction.
  • Mechanical counter M410, touch panel optional.
  • Coiler device RD20, to make coils of cable up to 600 .
  • For small drums of 600 and 350mm width
  • Slow ramp and adjustable speed regulator with the use of a frequency inverter.
  • Safety cage with automatic switch lock following the CE securities directive


Connect with Loimex

To learn more about our products and capabilities, or to get in touch with a Loimex representative, contact us today.

Contact us

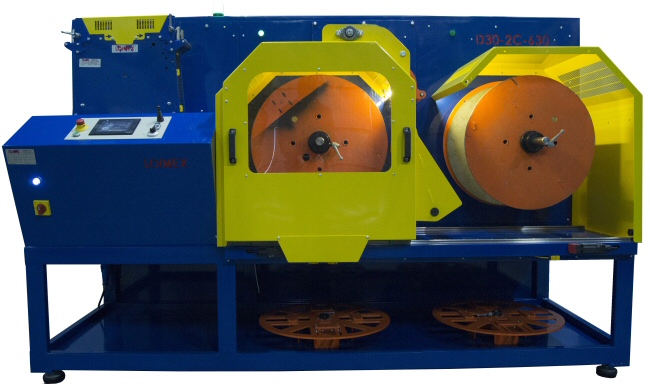

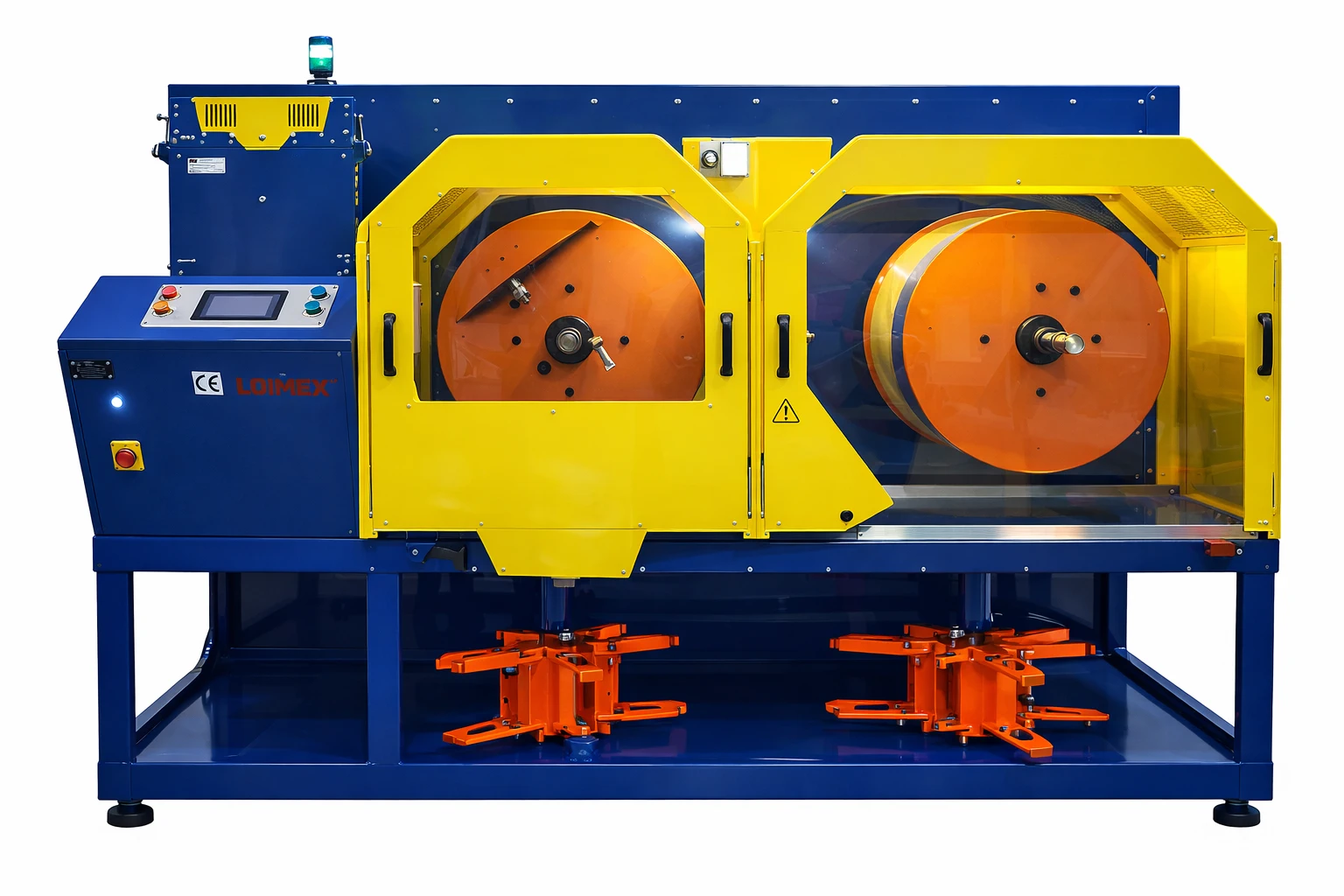

Doble coiling head for high production D30-2C

The measuring and coiling machines type D30-2C are used when cables, conductors, etc. have to be uncoiled from original coils, reels on jacks or reels in racks, or from an extrusion machine and to be measured at the same time.
Machines built using European Security normative CE

Range of application
With this measuring and coiling machine, type D30-2C, you can; make coils or fill small wooden drums of cable with a maximum weight of 200 kg and measuring cable of a diameter between 1 to 40 mm.
Features
  • Sturdy frame construction.
  • Mechanical counter M410, touch panel optional.
  • Coiler device RD20, to make coils of cable up to 600 .
  • For small drums of 600 and 350mm width
  • Slow ramp and adjustable speed regulator with the use of a frequency inverter.
  • Safety cage with automatic switch lock following the CE securities directive
D30-2C
Manual distribution tray cable -
Transport wheel -
Measuring head M40  M40
Mechanical counter type M410
Coiling device for coils of cable
exterior mm 800 600
maximun cone mm 420 250
minimun cone mm 350 215
width mm 200 150
Maximun weight kg. 150 50
Reels or small drums
exterior mm 800 600
width mm 350 350
Maximun weight kg. 200 200
Variable Frequency Drive
Speed ( R.P.M.) 15-80 (<200) 30-200
Power kW (HP) 0,75(1) 0,75(1)
Torque Nm. 129 129
Voltage (V / Hz) 230/50-60 ( opt 220III V ) 230/50-60 ( opt 220III V )
Fusing 1x16 A 1x16 A
Dimensions
